The door frame roll forming machine is one of the crucial production process chains in the modern construction and home industry for door manufacturing. Our range of production equipment, including door frame roll forming machines, and door panel roll forming machines, covers the entire process from raw material selection, pre-processing to final forming, providing metal door manufacturers with efficient and reliable solutions through the introduction of PLC control systems and highly adjustable production processes. These metal door forming machines can be used for the shaping of various types of steel and stainless steel door frames and panels, such as security doors, fire-rated doors, healthcare/hospital doors, clean room doors, etc.
-
-
Steel Door Frame Roll Forming Machine
Roll forming line for producing metal door frames with sheet thickness of 0.6 to 1.8mm
- NCM-400 steel door frame roll forming machine can be used for forming various types of steel and stainless steel door frames, and can process metal sheets with a thickness range of 0.6~1.8mm and a width range of 100mm~400mm into various specifications and shapes of door frames according to length and cross-section requirements.
- Material thickness 0.6-1.8mm, customizable
- Material width 100-400mm, customizable
- Production speed 0-10m/min, adjustable
- Power 15-45kW, depending on product configuration and cutting method
-
-
-
Steel Door Frame Roll Forming Machine
Roll forming line for producing metal door frames with sheet thickness of 0.8 to 2mm
- NCM-500D steel door frame roll forming machine can be used for the forming of various steel and stainless steel door frames. It can process metals with a thickness of 0.8 to 2.0mm into door frames of various specifications and shapes.
- Material thickness 0.8-2.0mm, customizable
- Material width 100-400mm, customizable
- Production speed 0-12m/min, adjustable
- Power 15-45kw, depending on product configuration
-
-
-

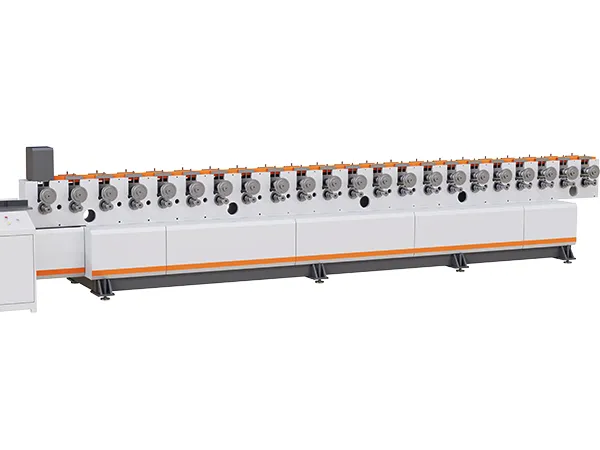

Steel Door Panel Roll Forming Machine
Roll forming line for producing metal door leaves with roll stands at one side
- NCM-560 door panel forming machine is suitable for roll forming the lock side/hinge side of the front and back panels of the door leaf. After one side of door panel is formed, roll forming of the other other side of door panel can be achieved by manually switching sides.
- Material thickness 0.5-1.0mm, customizable
- Material width 400-1200mm, customizable
- Production speed 8-12m/min, adjustable
- Power 7.5-11kW, depending on product configuration
-
-
-
Steel Door Panel Roll Forming Machine
Roll forming line for producing metal door leaves with roll stands at two sides
- NCM-580 steel door panel roll forming machine adopts fully automatic roll-forming method with roll stands at both sides. It achieves forming and folding of lock side/hinge side for various steel and stainless steel door panels by dual-mold roll-forming method.
- Material thickness 0.5-1.0mm, customizable
- Material width 400-1200mm, customizable
- Production speed 8-12m/min, adjustable
- Power 7.5-11kW, depending on product configuration
-
Related Door Machinery
-
- Steel Coil Straightener Our steel coil straightener adopts straightening rolls to conduct fully automatic straightening operation, and cutting process is achieved through hydraulic cutting.
-
- Press Brake & Panel Bender As a professional in door manufacturing machinery, NCMCO offers a wide range of press brake and panel benders, torsion bar press brake, electro-hydraulic press brake, CNC panel bending center, etc.
-
- Punching Machine We have a wide range of advanced punching equipment that uses hydraulic pressure to punch holes on door frame.
-
- Metal Door Press Machine Metal door press machine is dedicated to providing a sturdy and stable structure for door leaf products.
-
- Hydraulic Flanging Machine It achieves stretching and folding of various steel door panels at both ends through hydraulic flanging with dual arches and dual molds.
-
- Laser Cutting Machine The equipment radiates high-intensity laser onto the material surface, causing the material to melt or vaporize through the interaction between the laser and the material.
-
- Shearing Machine The door frame shearing machine includes hydraulic shearing machines, which adopts fully automatic hydraulic punching and shearing technology, achieving 45° corner cutting through hydraulic cutters.
-
- Glue Spreading Machine Glue spreading machine is used for providing high-quality surface coating and decorative effects for door panel products.
