Steel Door Frame & Panel Production Line
NCMCO has 26 years of experience in the metal door machine industry, we are happy to advise you from the selection of machines to the set-up of production line.
NCM-LJ

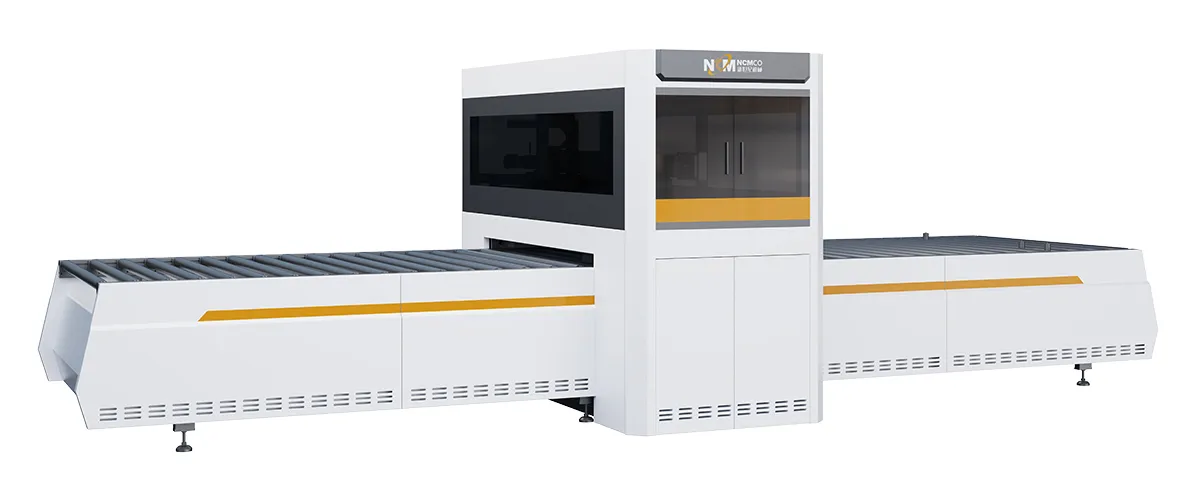

Automatic Spray Gluing Machine
Glue spreader for applying adhesive on steel door panels
NCM-LJ
Automatic Spray Gluing Machine
Glue spreader for applying adhesive on steel door panels
NCM-LJ automatic spray gluing machine adopts fully automatic gluing technique for gluing the front and back door panels of steel and stainless-steel doors. The glue spreader utilizes a servo glue pump to ensure stable glue dispensing, a high-sensitivity glue valve mixing tube for proper mixing, and a high-precision gluing head. The servo axis coordinates with the production line to achieve uniform and flexible glue dispensing, resulting in a layer of even and continuous glue application. Additionally, the automatic spray gluing machine can accommodate customized features such as adding sheet metal appearance and adjusting the diameter of the spray nozzle as per requirements.
Applications
Security doors
Fire-rated doors
Healthcare/hospital doors
Cleanroom doors
Technical Parameters
| Material thickness | 0.5-50mm,customizable |
| Material width | 300-1200mm,customizable |
| Material length | 500-3000mm,customizable |
| Gluing width | 240mm |
| Production speed | 0-8m/min |
| Main power | 4.5kW |
| Control | PLC |
| Air pressure | 0.4-0.8Mpa |
Features
- CNC adjustment ensures more uniform glue mixing and saves adhesive.
- Automatic gluing results in more uniform gluing, minimizing the risk of glue leakage and insufficient adhesive.
Get in Touch
Our team of engineers will answer all your questions regarding our metal door machines as well as solutions and services.
