Steel Door Frame & Panel Production Line
NCMCO has 26 years of experience in the metal door machine industry, we are happy to advise you from the selection of machines to the set-up of production line.
NCM-98

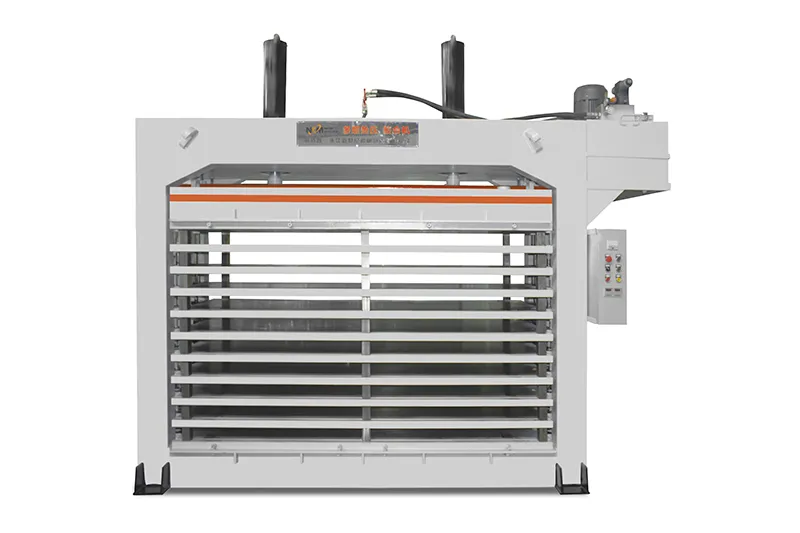

Hydraulic Steel Door Hot Press Machine
Lamination press for bonding up to 12 layers of metal sheets for steel door panel production
NCM-98
Hydraulic Steel Door Hot Press Machine
Lamination press for bonding up to 12 layers of metal sheets for steel door panel production
Hydraulic steel door hot press machine achieves uniform heating of steel and stainless-steel door panels through the circulation of heat-conducting media such as hot water or thermal oil, allowing for the complete solidification of adhesive layers. This steel door machine is mainly used for high-efficiency hot pressing and lamination processes in security doors, fire-rated doors, and other applications. The machine can be customized to handle up to 12 layers of lamination and can simultaneously complete the bonding of 12 door panels at once.
Applications
Security doors
Fire-rated doors
Healthcare/hospital doors
Cleanroom doors
Technical Parameters
| Number of gluing layers | 4-12 layers,customizable |
| Maximum opening distance | 200mm |
| Positioning block | 40-70mm,customizable |
| Grooving method | Upper/lower/No (optional) |
| Pressing platen temperature | Hot water of 80℃,thermal oil of 120℃ |
| Pressing time | 15-30 min |
| Thermal conductive medium | Hot water,steam,thermal oil |
| Total power | 7.5kw (excluding heating device) |
Features
- The pressing method from top to bottom has no need for a pit.
- Customizable positioning blocks are available for doors of different sizes.
- This hot press machine features better bonding effect and shorter processing time compared to cold press machines.
Details
-
-
-
Main Frame
Both sides of the arc are fully processed by CNC boring and milling, and undergo long-term vibration aging treatment, making the main frame more sturdy.
-
-
-
-

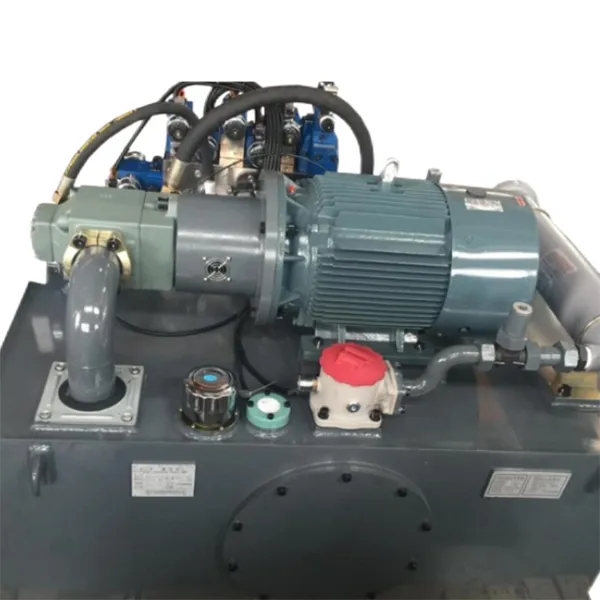

Hydraulic System
A new integrated hydraulic system is equipped with an accumulator control system, and additionally configured with pressure sensors to control the operating pressure. The upper and lower parts are equipped with maximum capacity oil tanks and a new direct filling device.

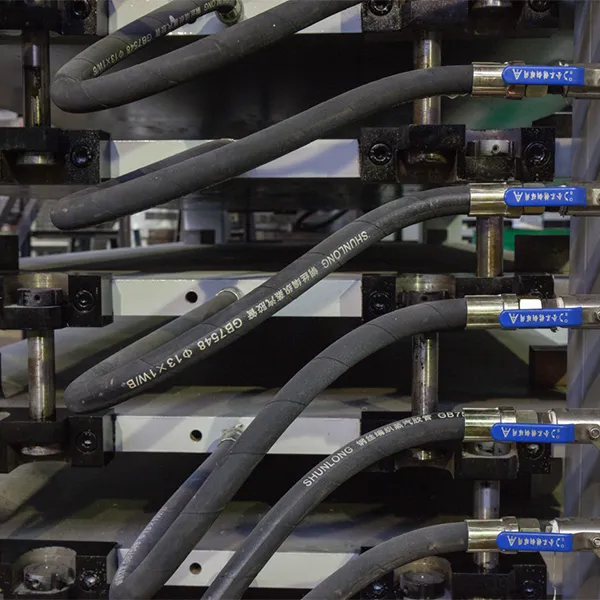

Multiple layers of large flat steel plates are arranged for bonding.
-
-
-
-

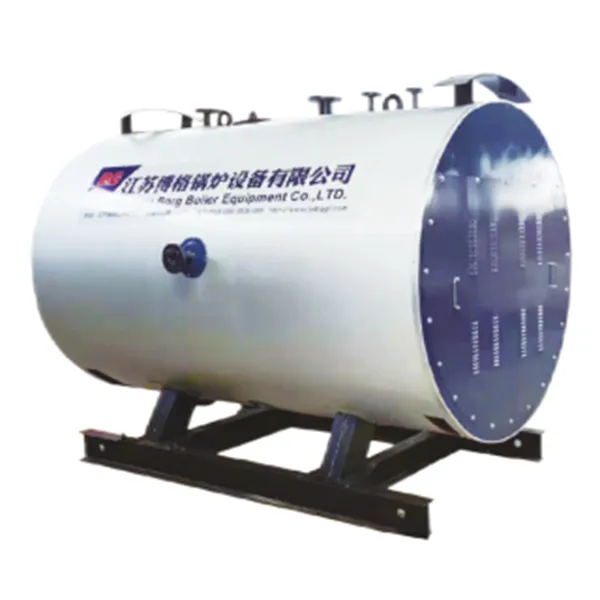

Heating System
Electric heating system allows for faster heating speed and higher temperature control accuracy, suitable for hot pressing processes with high temperature requirements.
A forced air cooling system is adopted to effectively reduce the working temperature of the hydraulic system.
-
-
-
-

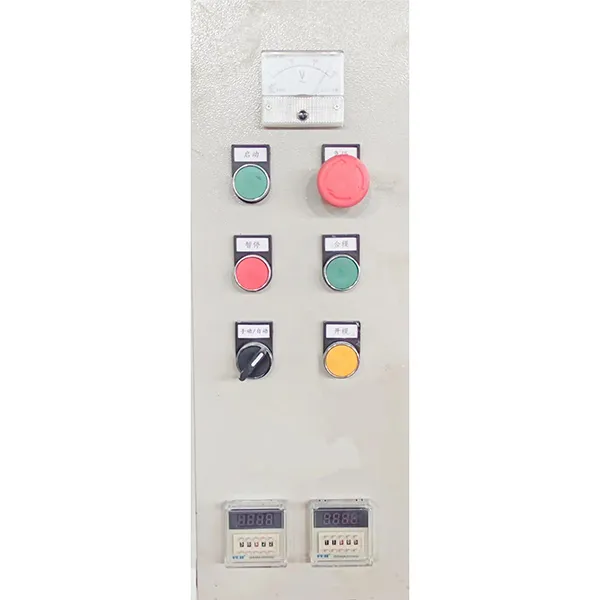

Electrical Control System
Optional in Siemens/Delta/Mitsubishi and other electrical components according to requirements.
-
