NCM-SC
CNC Punching Machine
Automatic punching machine for hole punching and notching prior to metal door frame formation
NCM-SC
Hydraulic Single Punching Machine
Automatic punching machine for hole punching and notching prior to metal door frame formation

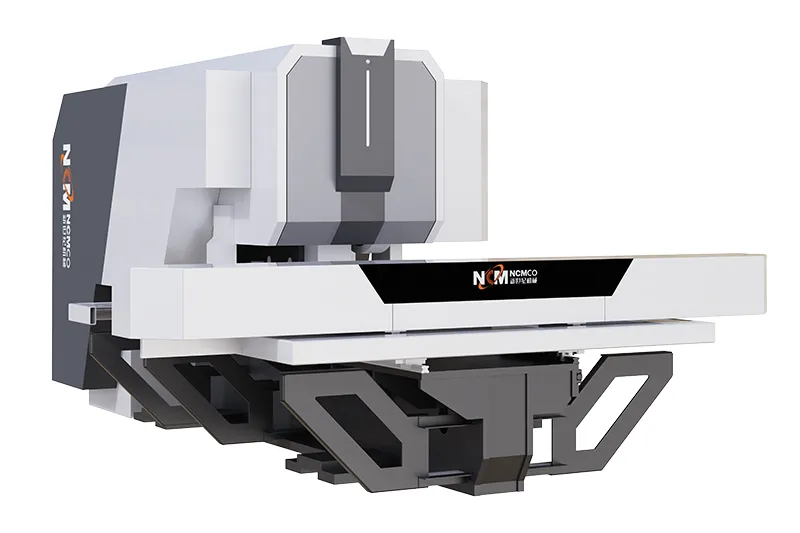

NCM-SC CNC punching machine is advanced equipment used for punching and forming the holes in steel and stainless steel door frames after frame forming, or for notching before frame forming. Its punching force can reach 40T with a maximum punching frequency of 260 times/min. The fixed tooling workstation structure ensures stable punching and can be customized according to your specific requirements. The multiple punching heads can simultaneously punch, resulting in higher production efficiency.
Applications
Security doors
Fire-rated doors
Healthcare/hospital doors
Cleanroom doors
Features
- Fixed tooling station structure ensures stable stamping.
- Multiple punch heads can stamp simultaneously, improving production efficiency.
Technical Parameters
| Punching pressure | 40T |
| Punching stations | 18 |
| Tool layout | Customizable |
| Sheet thickness | 3.0mm (stainless steel) /5.0mm (cold rolled plate) |
| Sheet size | 2500*1250mm |
| Processing weight | 117kg |
| Error | ±0.1mm |
| Punching speed | 260pcs/min,adjustable |
| Worktable moving speed | 40m/min |
| Control axis (X-Y) | 2 |
| Air pressure | 6~8kg/cm2 |
| Power supply | 380/9V/kW |
| Dimensions | 4500*3500*2300mm,standard |
| Weight | 8.3T |
