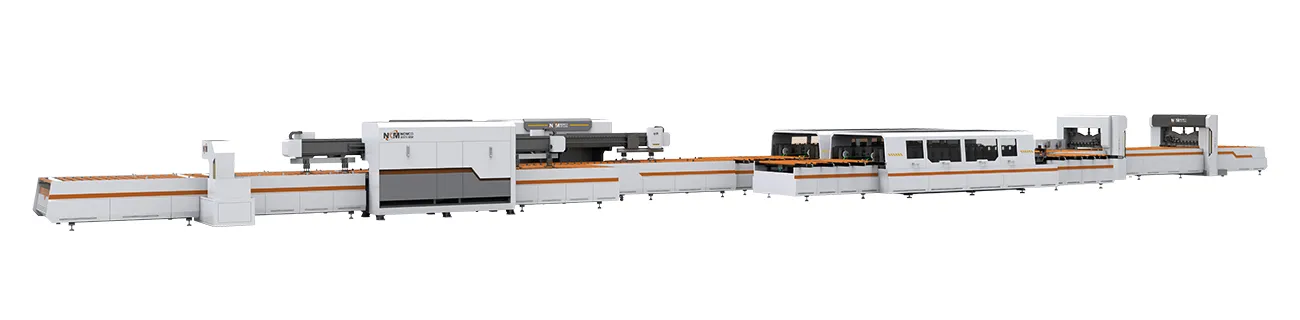

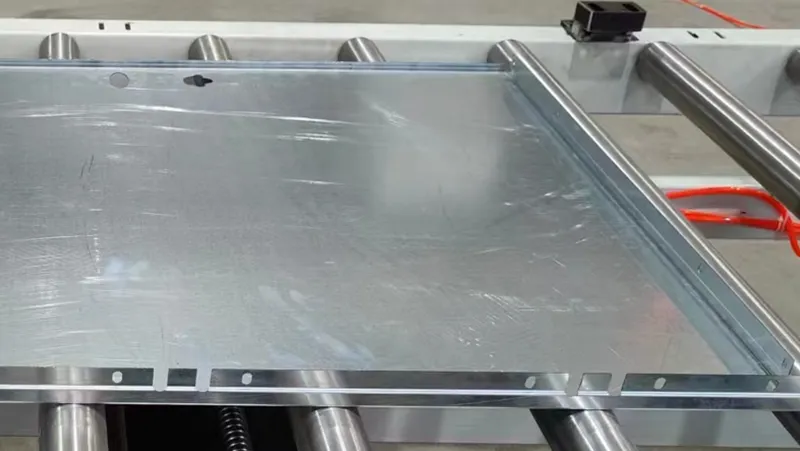

Comprehensive metal roll forming line for metal door leaf manufacturing

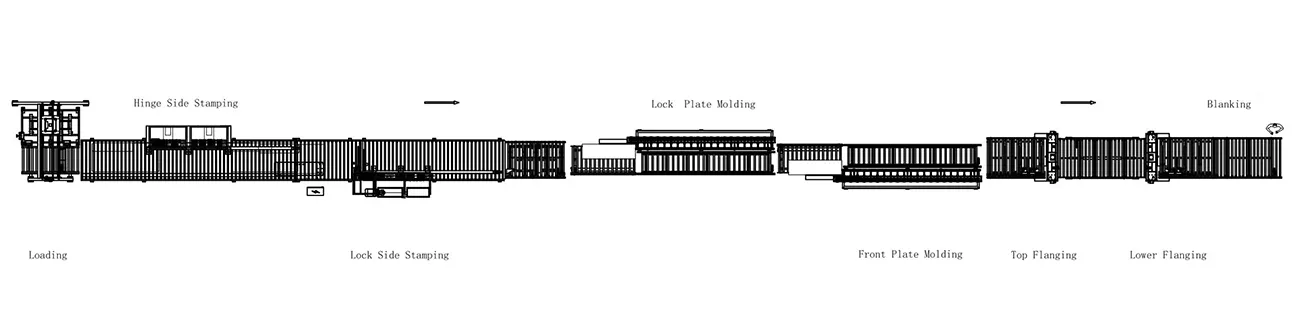

Punching process

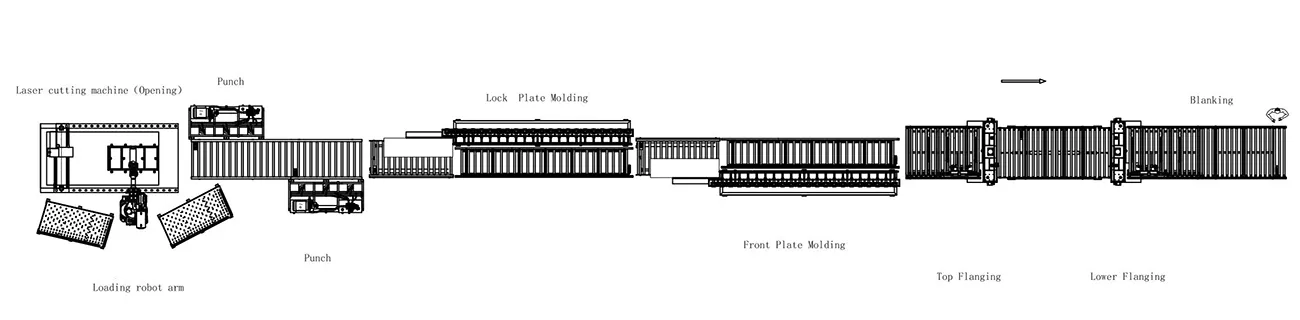

Laser cutting process

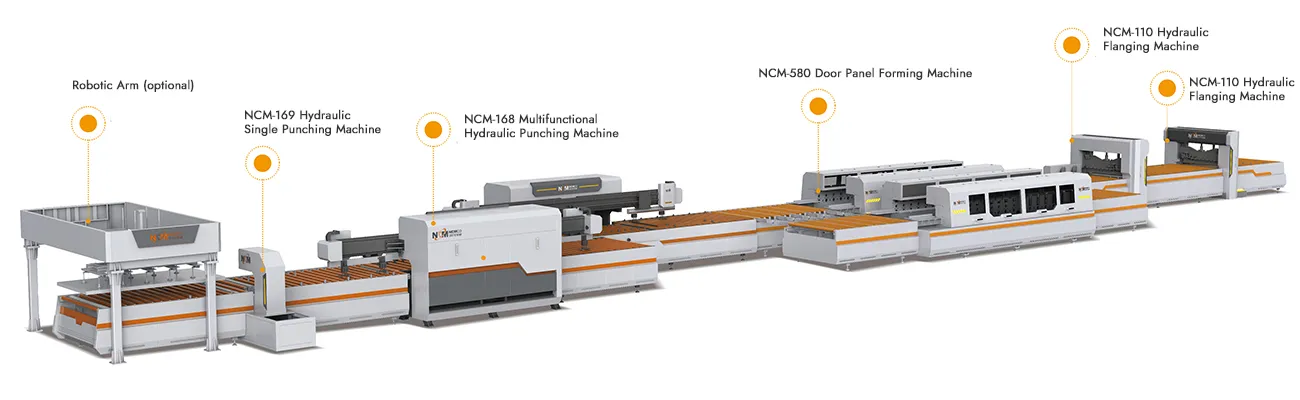

Automatic steel door panel production line employs robotic arm for automatic feeding and utilizes the NCM-660 door panel roll forming machine for shaping. It achieves alternate forming of the lock side/hinge side frames. Hydraulic flanging is employed for shaping the top and bottom ends. The steel door panel production line can be customized according to process requirements. When selecting the multi-head punching machine for punching, extruded hole forming can be performed simultaneously. When opting for laser cutting, the metal door manufacturing line does not require molds and can customize hole positions as needed.
Request a Quote
Technical Parameters
Material thickness
0.5-1.0mm,customizable
Material width
400~1200mm,customizable
Production speed
(30-40) S/P
Total power
30-80kW (depending on product configuration)
PLC system
Delta/Siemens,optional
Features
Fully automatic operation, with remote operation capabilities
All processes can be completed on the production line, eliminating the need for additional areas and minimizing dowtime.
The 560 roll forming method enables frame forming that some bending methods cannot achieve.
1. Servo motor ensures stable running, interference free, and multiple control modes.
2. The rollers are made of high quality materials, providing lose noise, strong load bearing capacity, stable running and wear resistance.
3. The machine body adopts a "welding" process, which further enhances the stability of the connections and improves the overall lifespan of the machine

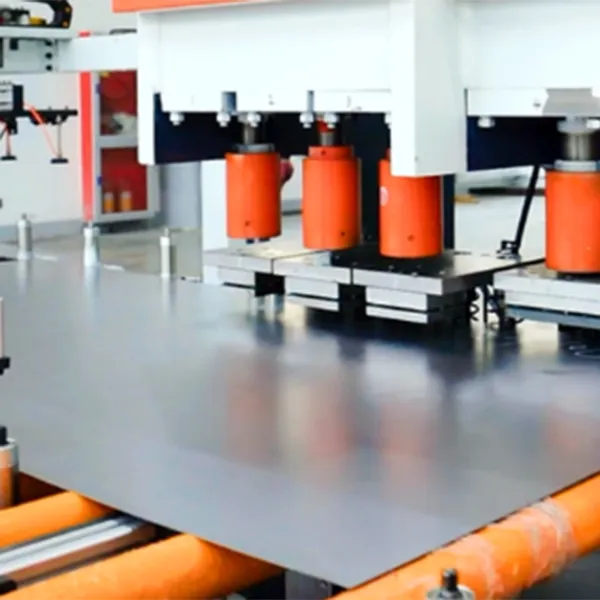

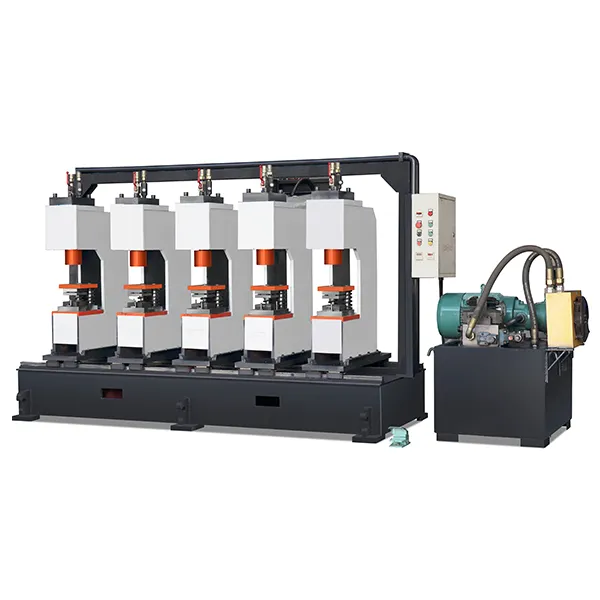

Punching Machine
NCM-169 Single-head Combination Punching Machine

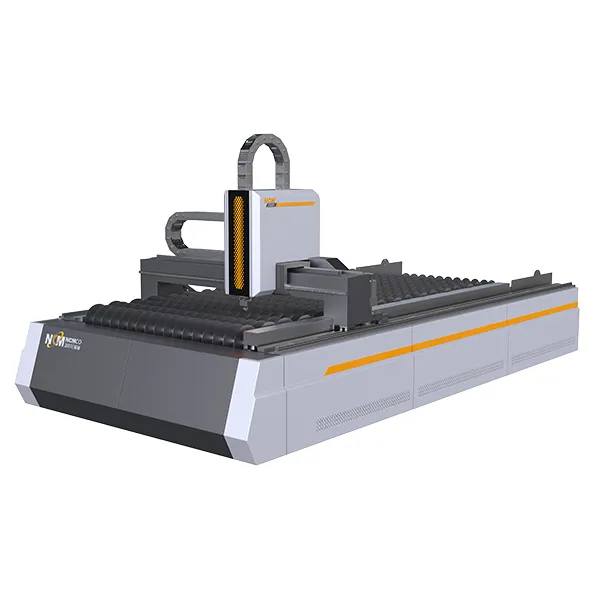

Laser Cutting Machine
NCM-JG Fiber laser Cutting Machine (Optional)

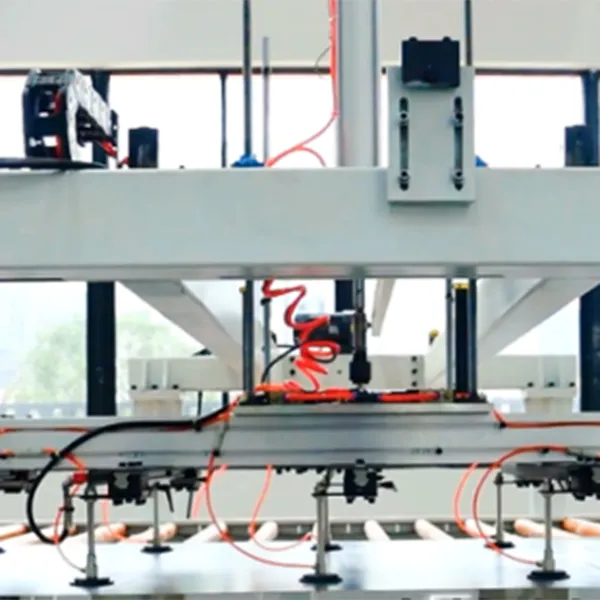

Punching Robot
1. Pneumatic clamp, firm and will not damage the surface of the door panel.
2. Automatic feeding, automatic material retrieval and precise positioning require no need for manual intervention.

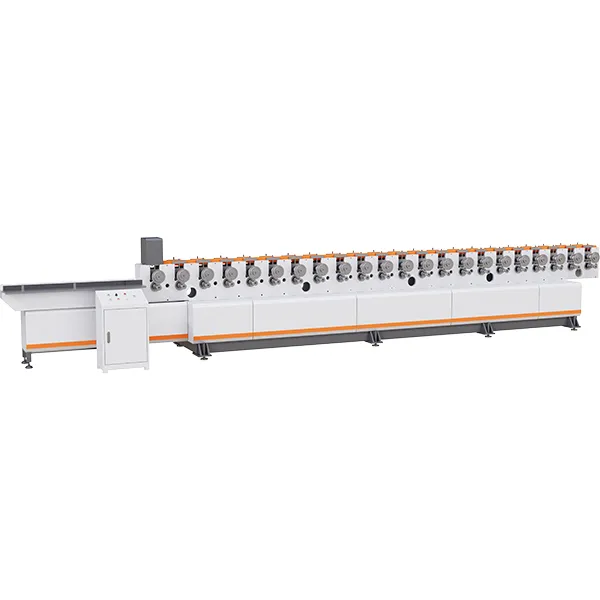

NCM-560 Door Panel Forming Machine
NCM-110 Hydraulic Flanging Machine

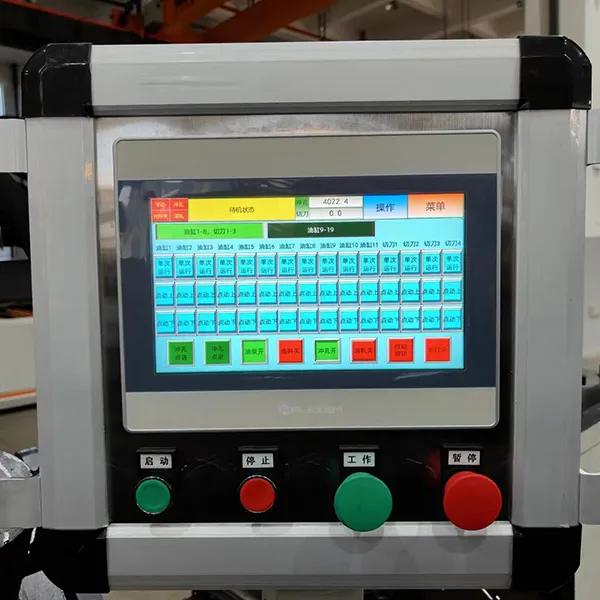

Electric Control System

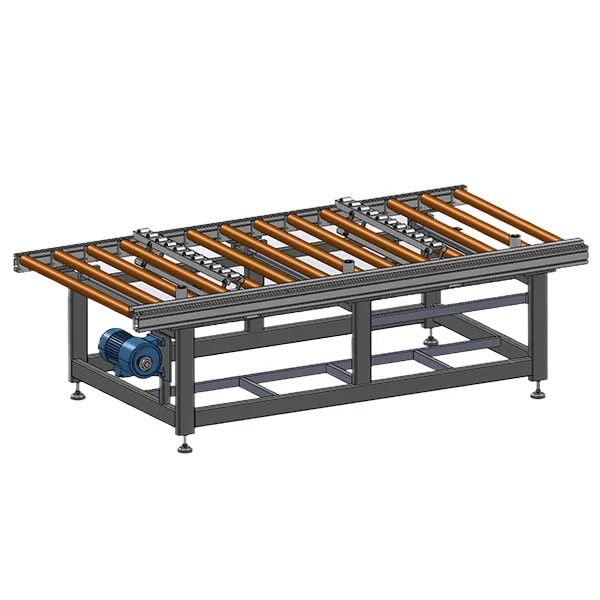

1. The entire production line achieves process serialization through various conveying devices, all controlled uniformly by the PLC control system.
2. The production line is serially connected, allowing for preset production modes to accommodate various production needs.
Security doors
Fire-rated doors
Healthcare/hospital doors
Cleanroom doors
